Ultimate Windows Home Media Server Guide

Accessing Remotely

If you are only interested in accessing these programs from within your local network then you are all done. If you want to get a remote desktop of your home media server over your local network install Tight VNC Server next.

If you are interested in accessing outside your home network a free dynamic dns account with afraid. I explain how to use them in this guide.

Install Tight VNC Server

Time to install tight vnc server on your home media server

Go to the download page and choose either the 32 or 64 bit version

Open it up, click Next.

tight vnc server setup wizard

Click I accept and then Next

tight vnc accept license agreement

Click Custom

tight vnc server click custom

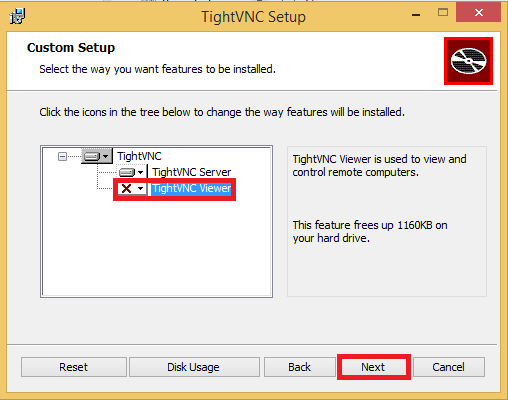

Since this is only for the server you do not need the TightVNC Viewer. Click Next.

tight vnc server only

Make sure all of these items are checked so TightVNC runs as a system service.

vnc service boxes checked

Click Install

tight vnc server click install

Now you will be prompted to enter the password to access TightVNC.

Make sure you choose a secure password if you will be accessing the server over the internet

tight vnc server set passwords

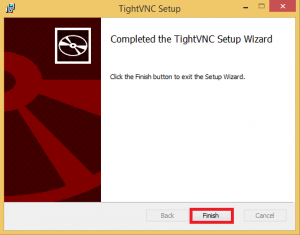

Now click Finish

tight vnc server click finish

Now double check the incoming connectsions are set correctly. Go into Start and find TightVNC Service Configuration.

Make sure Accept incoming connection is set and the port is 5900. Make sure Require VNC authentication is ticked.

Click OK

tight vnc service accept incoming connections

Connect to your TightVNC Server from Windows

Grab the same TightVNC Installer but this time choose to install the Viewer only

tightvnc server choose server

Leave these options checked

tight vnc viewer only additional tasks

Now open Up TightVNC Viewer from the Start menu.

Type in your home media server’s local IP and click Connect.

tight vnc viewer connection enter IP

You will be prompted to enter the password you set when you installed the server.

Enter the password and click Ok

tight vnc viewer enter password

Now you will be viewing your home media server’s screen and you can do whatever management you need to. To setup accessing the server outside your home network continue to the next page.
